Description

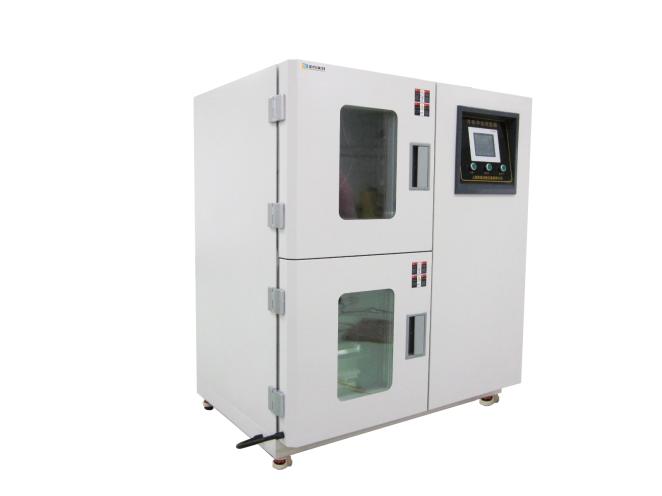

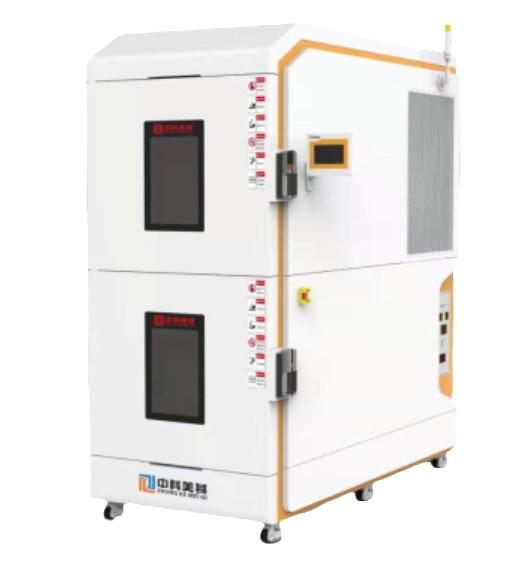

Thermal Shock Environmental Test Chamber


 Product Show:


 Product Advantages:



High-low temperature tester Hot Cold Test Laboratory oven professional machinary



 Product Process:



High-low temperature tester Hot Cold Test Laboratory oven professional machinary



 Product Parameters:



Two-box temperature impact test chamber(vertical basket/horizontal basket type)



Product Usage:

The temperature impact test box is mainly used for the reliability test of high and low temperature constants and various temperature impacts and temperature changes of electricians, electronic products, components, parts, and metal materials.

Implementation and meeting standards:

GB/T 10592-2008 :high and low temperature test chamber technical conditions

GB/T 2423.22-2008 :temperature change rate test method

GJB 150.3A-2009 :high temperature test method

GJB 150.4A-2009 :low temperature test method

GJB 150.5A-2009 :temperature impact test method

GJB 360B-2009:test methods for electronic and electrical components 107 requirements for temperature shock tests

GB/T 5170.2-2008:test method for environmental test equipment of electric and

electronic products Temperature test equipment

Product features:

New type of refrigeration: -120°C ultra-low temperature cooling capacity to meet the ultra-low temperature shock requirements of users

Efficient and energy-saving: reduce power consumption by more than 30% during low temperature test

Excellent performance: performance indicators better than national and military standard requirements

Compact and flexible: compact, flexible movement, saving space

Simple operation: user-friendly operation interface, one-stop start-up, no professional training

Multiple Protection: Ensure the safety of personnel, test pieces and equipment, worry-free use

Technical indicators

Product name

Two box type temperature impact test box

Product model

MQ-2TS100

MQ-2TS180

MQ-2TS300

MQ-2TS1000

Nominal volume

Unit/L

100

180

300

1000

Inner size

Width × depth × height (mm)

500×500×400

600×600×500

700×700×600

1000×1000×1000

External size

Width × depth × height (mm)

1020×1200×1850

1200×1500×1900

1350×1600×1980

2450×1800×1980

Basket size

Width × depth × height (mm)

350×350×250

450×450×350

550×550×450

800×800×800

Operating mode

A.vertical basket   B. horizontal basket type

Performance

index

temperature range

A,-75℃~200℃  B,-90℃~200℃  C,-120℃~200℃

Impact range

A,-55℃~160℃  B,-75℃~160℃  C,-85℃~160℃

Temperature fluctuation

±0.5℃

Temperature uniformity

≤±2.0℃

Temperature deviation

≤±2.0℃

heating rate

RT~+200℃,≤40Min

Cooling rate

A,+25℃~-75℃,≤60Min;B,+25℃~-90℃,≤80Min;C,+25℃~-90℃,≤100Min;

Temperature conversion time

≤15s

Temperature recovery time

≤5Min

Exposure conditions

High temperature exposure 30Mins; Low temperature exposure 30Mins

Refrigeration method

Compressor refrigeration

Cooling method

Air-cooled/water-cooled

Main components

Control System

Siemens programmable controller + touch screen + independent development program

Heating system

Fully independent system, high efficiency stainless steel finned tube heater

Cooling System

Importer-type scroll compressor

Circulatory system

Temperature and low noise motor, stainless steel centrifugal impeller

Main materials

Carton material

High-quality carbon steel plate, phosphating electrostatic spray treatment

Inner box material

International standard SUS304# stainless steel mirror treatment

Insulation material

Hard flame retardant polyurethane foam

Sealing material

High and low temperature environment-friendly silicone rubber seal

voltage

380±10% VAC,50Hz;3L+N+G

Communication Interface

RS232 communication interface, USB data interface

Standard configuration

1 sample holder, 1 test lead hole, 1 silicone plug

Optional accessories

Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge

safety devices

Leakage, short circuit, motor overheating, heater overheating, humidification, water shortage, compressor overpressure, overload, multiple overtemperature protection

Environmental requirements

Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around;

Water supply temperature: ≤ 30 °C, water pressure: 0.1 ~ 0.3MPa, water quality meets industrial water standards;

Note:

 1. temperature performance parameters are in the ambient temperature of 25 °C, studio no load conditions, in accordance with GB/T5170.2-2008 test;

2.according to the specific requirements of users customized non-standard high and low temperature impact test box;

3.This technical information is subject to change without notice.
